Modeling the HMS 'Bounty's Launch 1789 (Instruction manual)
Year: 2006 Language: English Author: Crane B. Genre: Manual Publisher: Model Shipways, Inc. ISBN: 0-929834-00-3 Format: PDF Quality: eBook Pages count: 20 Description: Model Shipways’ Launch of the Bounty kit is manufactured to a scale of 3/4" = 1' 0" (1:16). Each sheet is drawn to that scale except areas enlarged to show detail. A scale of 2X noted on the plans is twice scale, or 1-1/2" = 1' 0". Most dimensions can be lifted directly off the plans by using draftsman dividers or a “tick” strip (strip of paper). Lay the paper strip over the plan, carefully mark the item’s length with a sharp pencil, then transfer the marks to the wood. This is general model practice but will not be likely necessary since nearly every part in the kit is laser cut.
Contents
Screenshots
5
Crane B. Modeling the HMS 'Bounty's Launch 1789 (Instruction manual), 2006.pdf
You cannot post new topics in this forum You cannot reply to topics in this forum You cannot edit your posts in this forum You cannot delete your posts in this forum You cannot vote in polls in this forum You cannot attach files in this forum You cannot download files in this forum
Modeling the HMS 'Bounty's Launch 1789 (Instruction manual)
Language: English
Author: Crane B.
Genre: Manual
Publisher: Model Shipways, Inc.
ISBN: 0-929834-00-3
Format: PDF
Quality: eBook
Pages count: 20

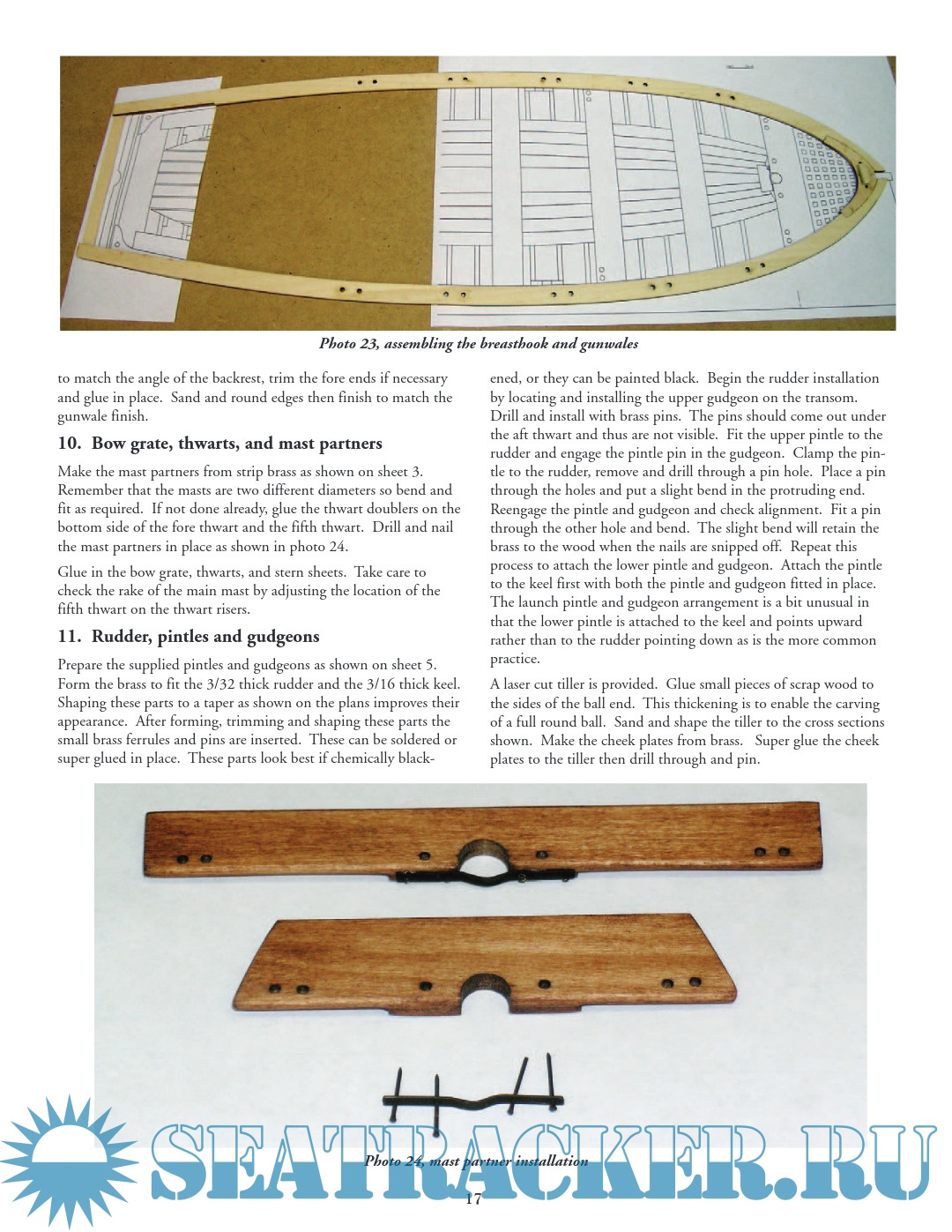

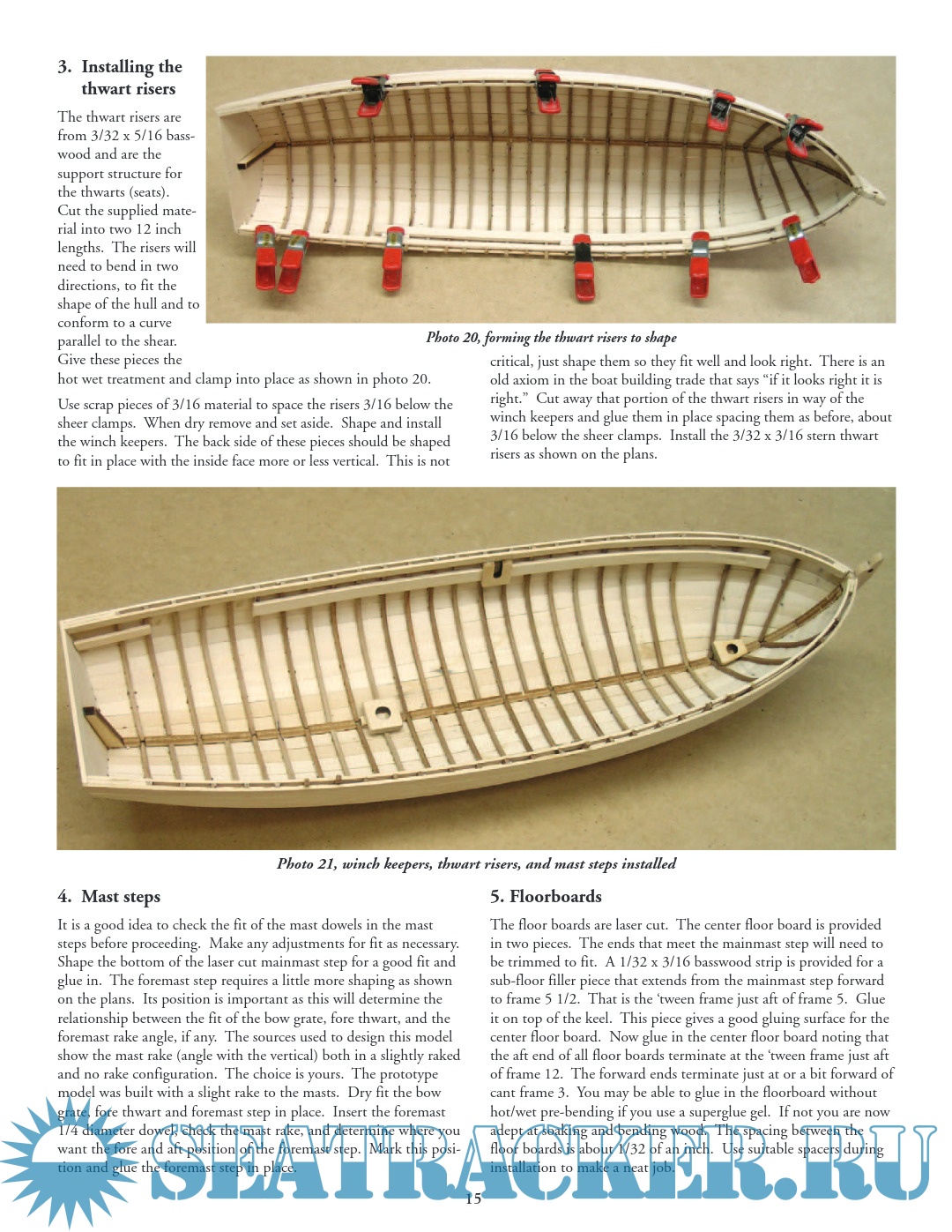

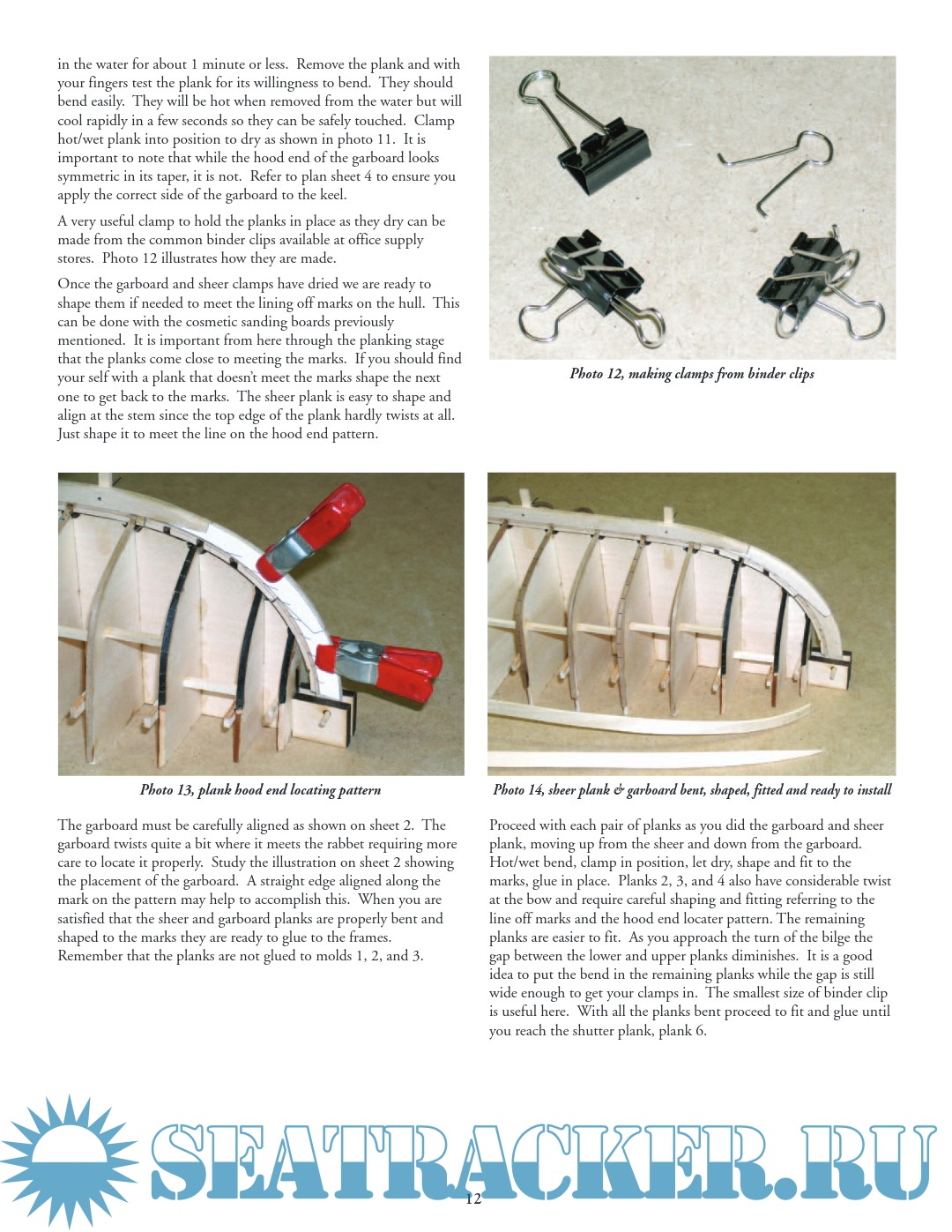

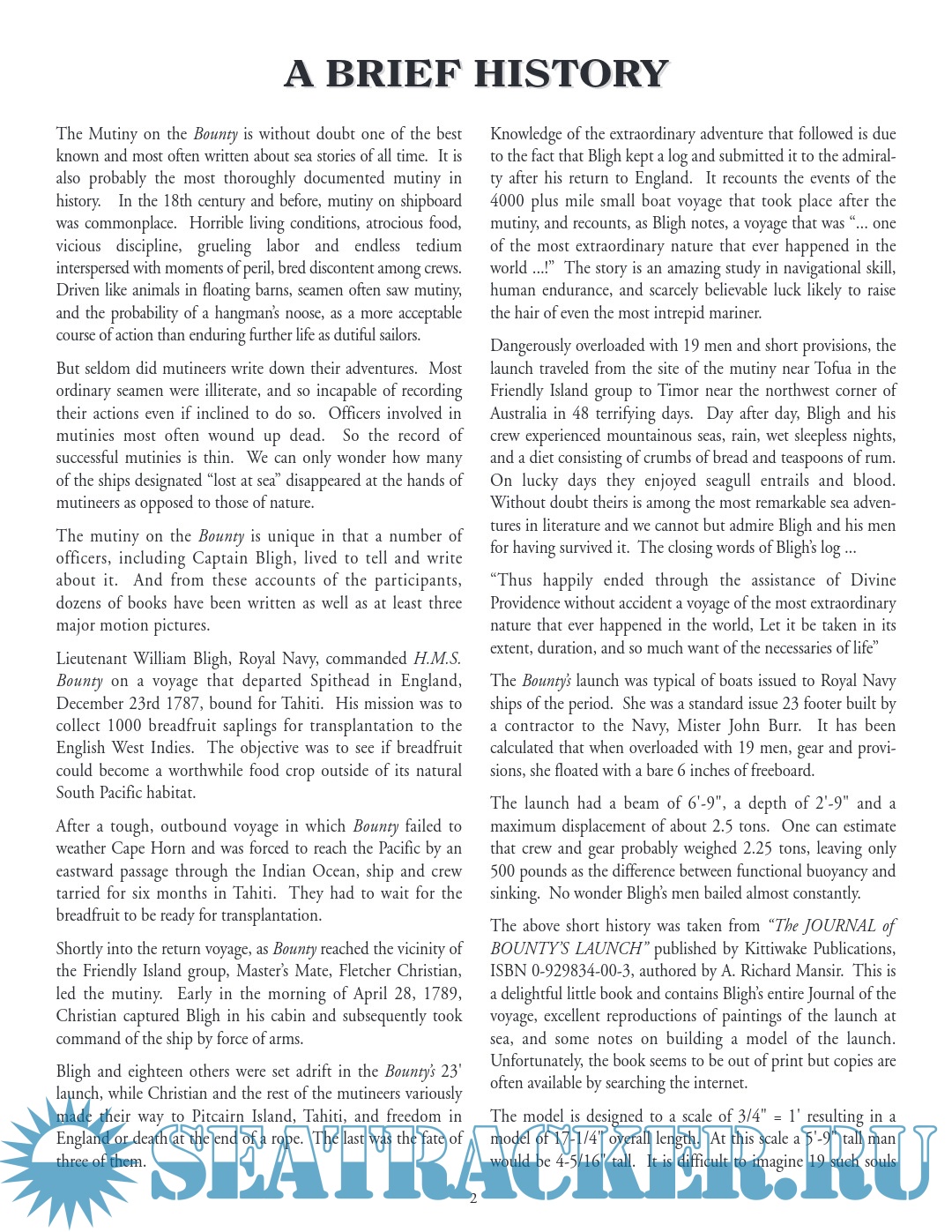

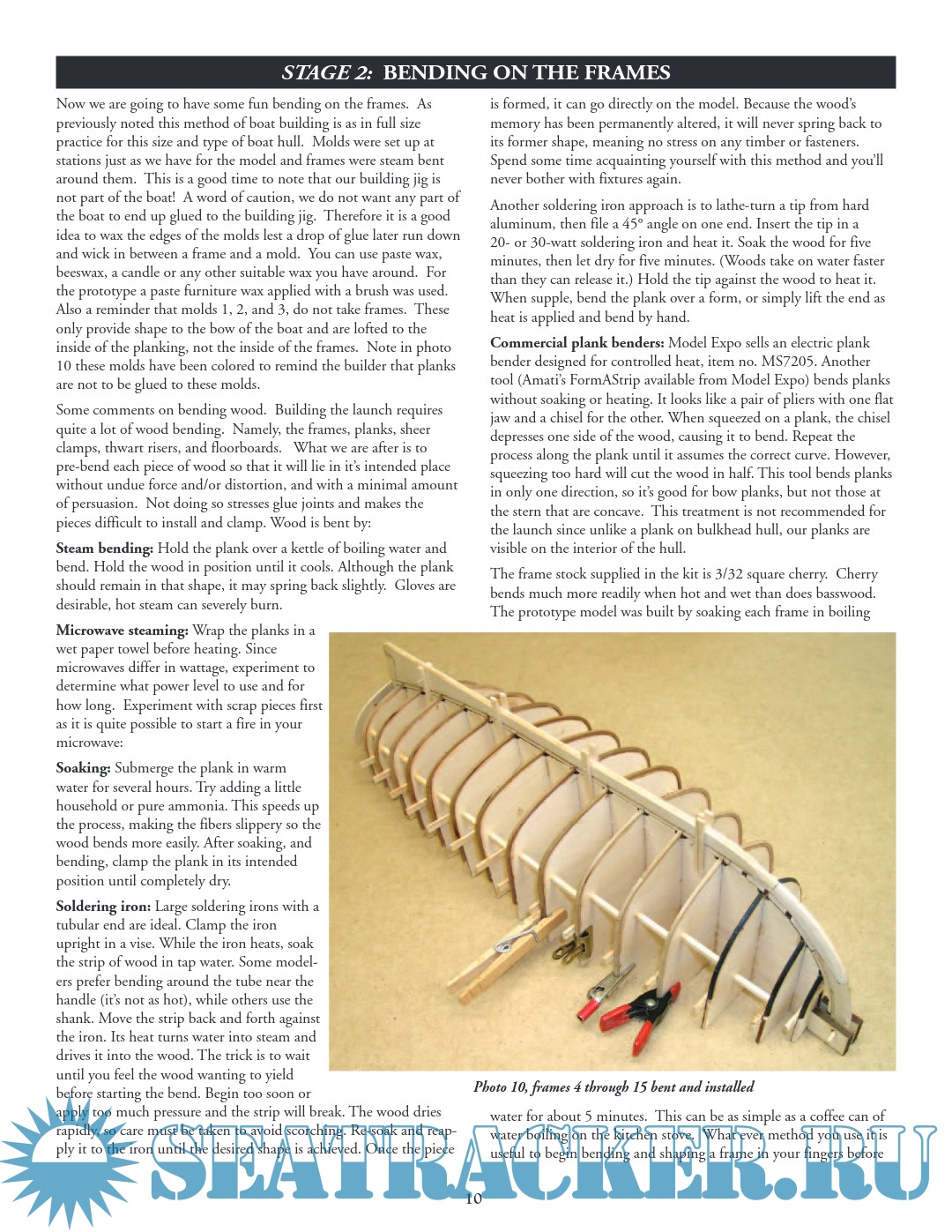

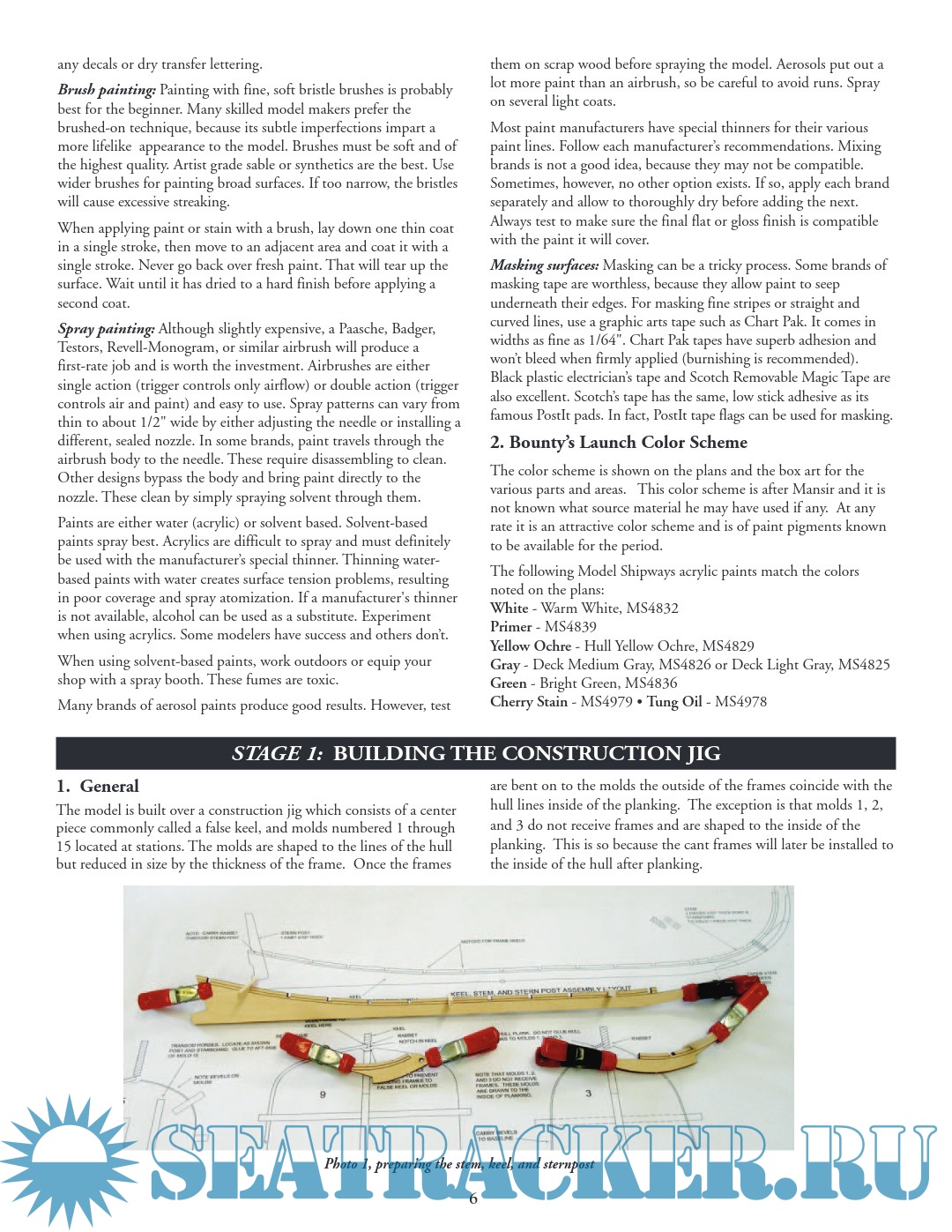

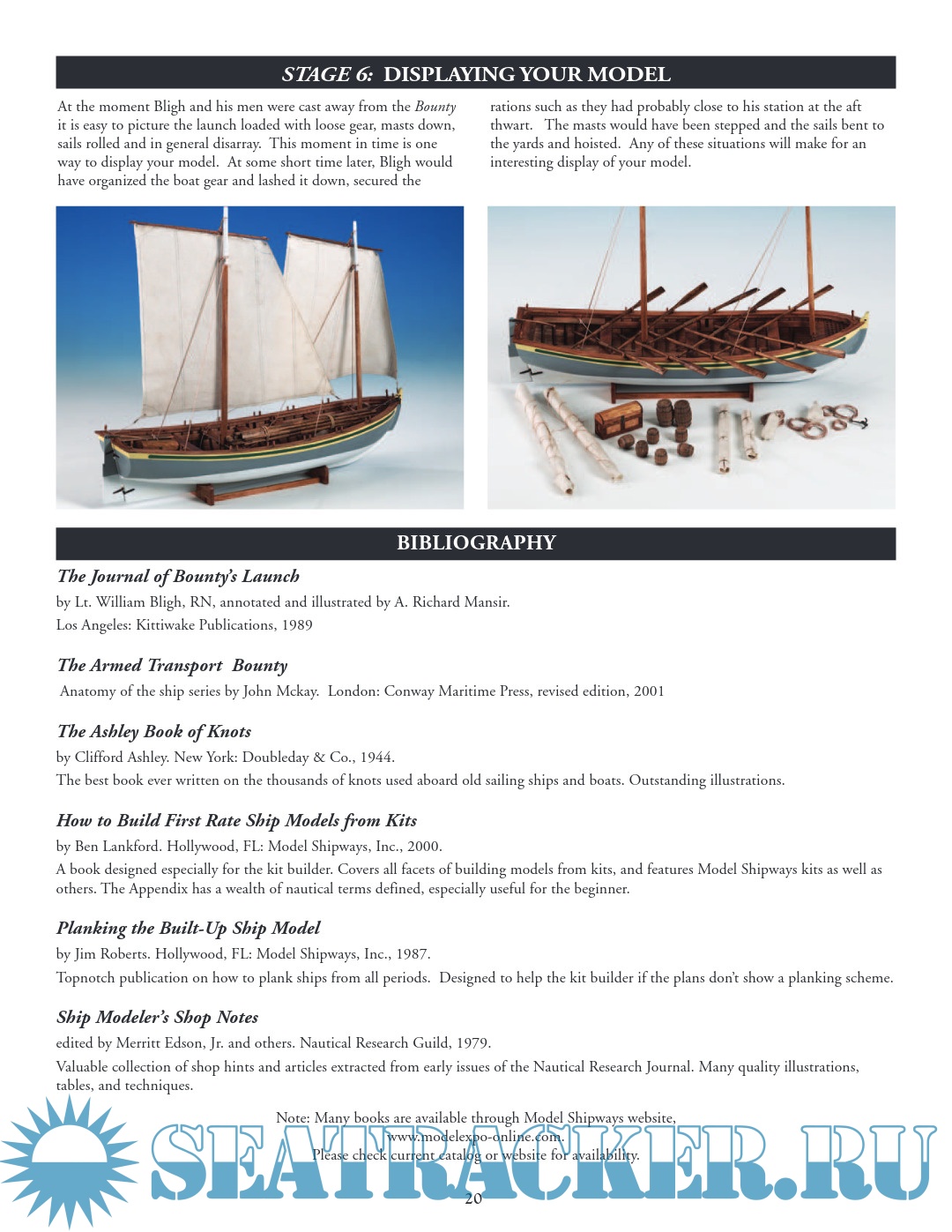

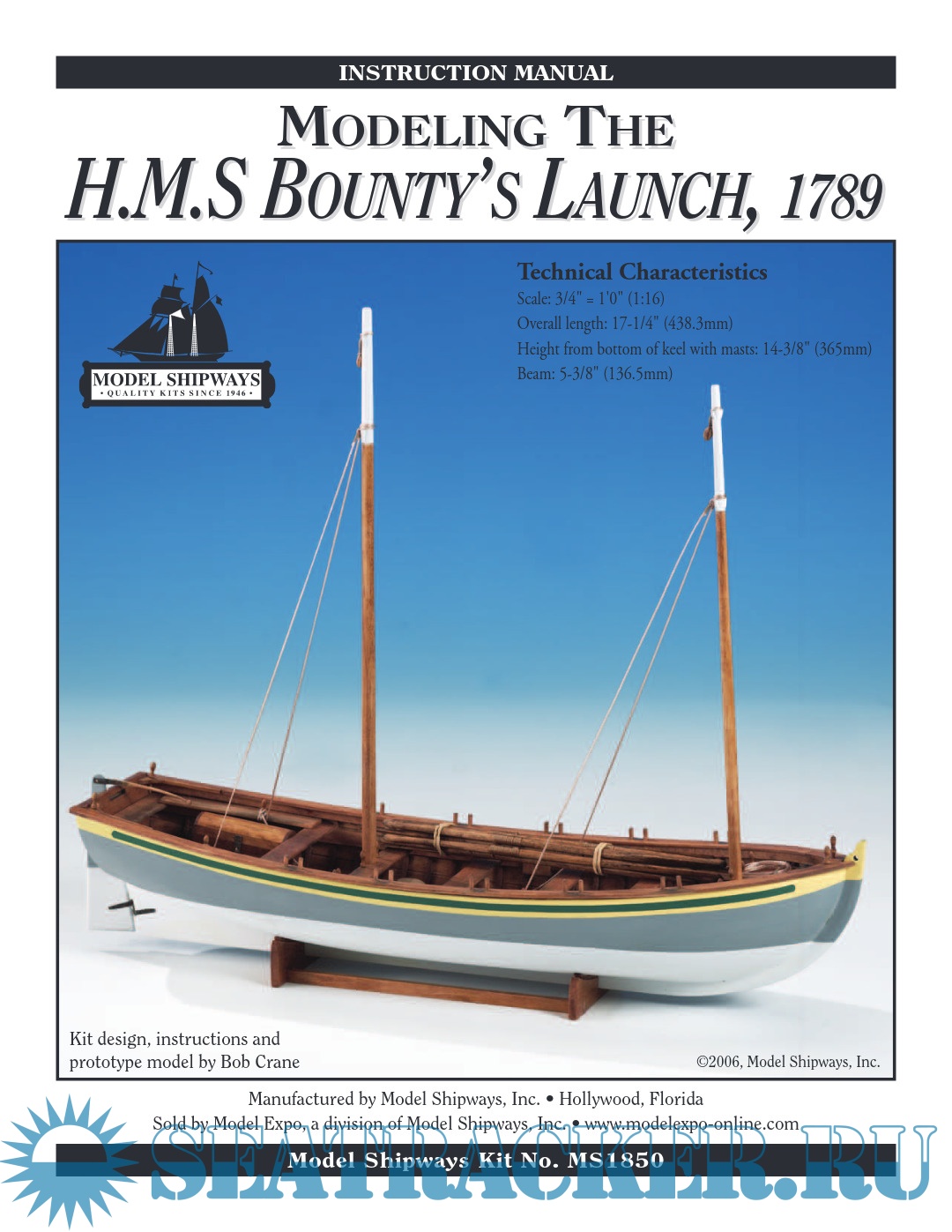

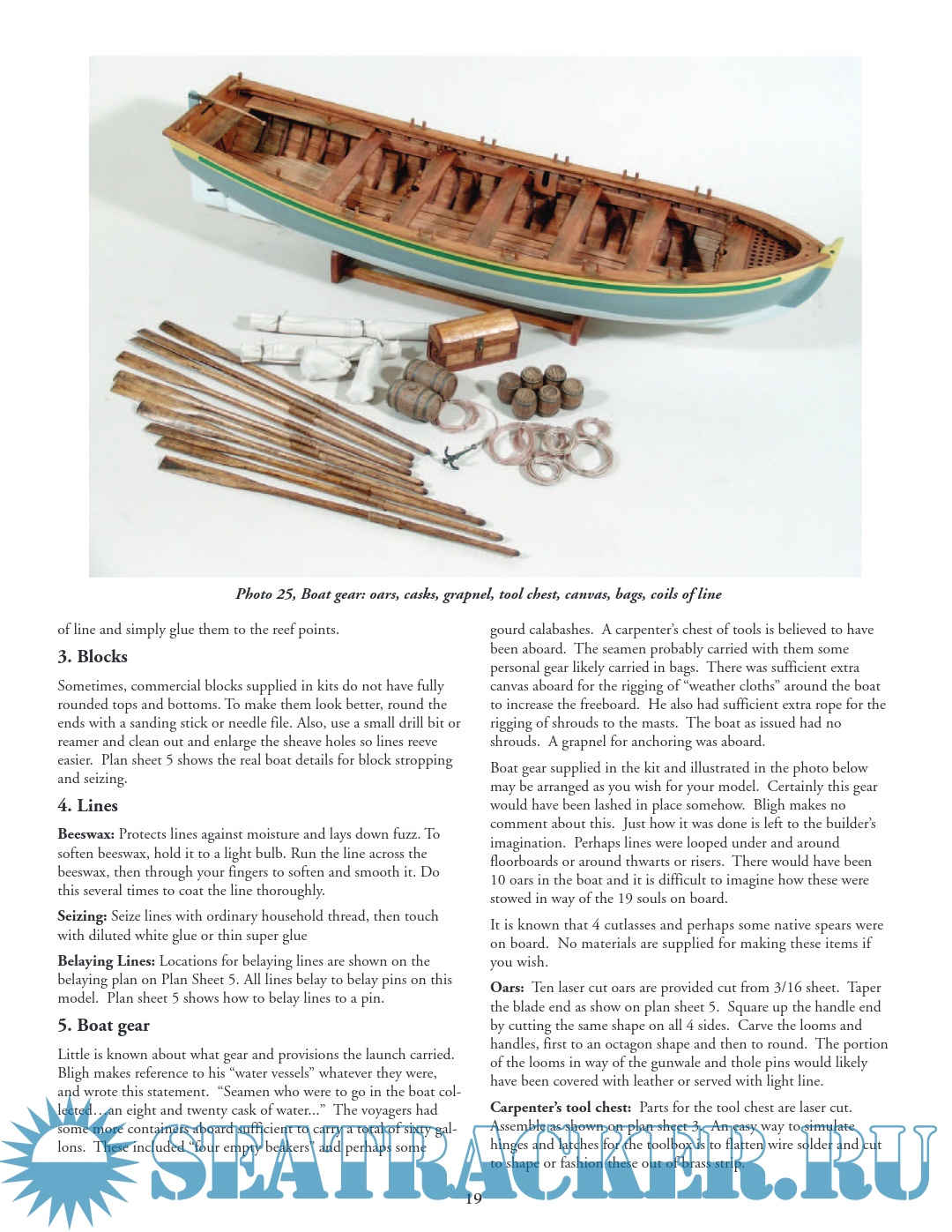

Description: Model Shipways’ Launch of the Bounty kit is manufactured to a scale of 3/4" = 1' 0" (1:16). Each sheet is drawn to that scale except areas enlarged to show detail. A scale of 2X noted on the plans is twice scale, or 1-1/2" = 1' 0". Most dimensions can be lifted directly off the plans by using draftsman dividers or a “tick” strip (strip of paper). Lay the paper strip over the plan, carefully mark the item’s length with a sharp pencil, then transfer the marks to the wood. This is general model practice but will not be likely necessary since nearly every part in the kit is laser cut.
