Year: 2026 Version: 2024 Developer: DMSCTS DALIAN MARITIME UNIVERSITY Platform: Windows 64-bit OS compatibility: yes System Requirements: At least 2Gb of VRAM and 13Gb of RAM. Localization: English Crack: Not needed Description: This is the VLCC virtual lab from the D.M.U. (Dalian Maritime University) The package includes : M (simulator core), 2D (2D Terminal) and the 3D terminal. You MUST have the DMSCTS workstation installed on you device. you can get it for free on ers3d.com or on the forum You can create an account but, it's not mandatory. To install :
Un-Torrent the file.
Copy the archive and paste it at : DRIVE://Programs/DMSCTS/Simulators
Then, Launch the DMSCTS Terminal (DRIVE://Programs/DMSCTS/Terminal.exe)
Log-in the terminal or use the default login.
Enter a room/session
Go to the simulator's core located in : DRIVE://Programs/DMSCTS/Simulators/VLCCVIRTUALLAB/DMSVLCCM.exe , launch it with elevated privileges.
If you want to use the 2D terminal, launch the executable located in .VLCCVIRTUALLAB/2D
If you want to use the 3D terminal, launch the executable located in .VLCCVIRTUALLAB/3D
Feel free to ask any questions or for help here. If you don't succeed to link the terminals to the M core, please, ask for help here and i will write a step-by-steps instructions list. Thx !
Thank you so much for sharing! I got the 2D version working fine, but I'm having an issue with 3D: "Link to the server un-successfully" Could you please help me with this?
Hi , pleasure ! Please can you take and send in the topic screenshots of the network configuration menus of the 3D terminal and the M core ? It's possibly a bad configuration, or the ports are actually used. we will fix that anyways (:

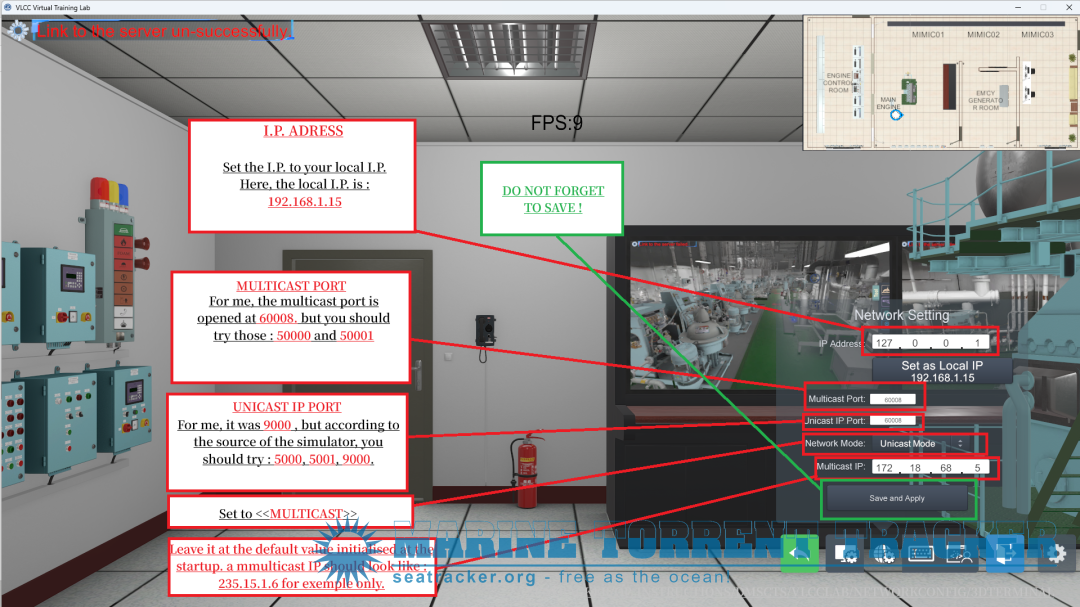

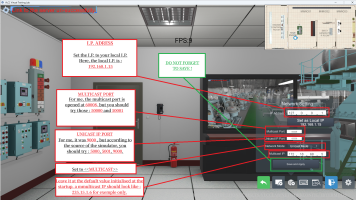

Here is the helper for the network configuration of the 3D terminal. see the attached screenshot. @itc1975, your M client (DMSVLCCM) seems to be well configured, anyways, can you check the network mode in the operating menu is <<LOCAL>> and not <<DISTRIBUTED>> ? thx !
Thank you for your help! I updated the settings to: Network Mode: Multicast Mode Multicast IP: 231.8.9.13 (retrieved from C:\Program Files\DMSCTS\simulator\VLCCAVirtualLAB\M\Xml\IPconfig3D.xml) After clicking Save and Apply, it worked! However, I noticed that I have to click "Save and Apply" every time I restart the LAB.
You cannot post new topics in this forum You cannot reply to topics in this forum You cannot edit your posts in this forum You cannot delete your posts in this forum You cannot vote in polls in this forum You cannot attach files in this forum You cannot download files in this forum
The VLCC LAB from the D.M.U. (3D+2D)
Version: 2024
Developer: DMSCTS DALIAN MARITIME UNIVERSITY
Platform: Windows
64-bit OS compatibility: yes
System Requirements: At least 2Gb of VRAM and 13Gb of RAM.
Localization: English
Crack: Not needed
Description: This is the VLCC virtual lab from the D.M.U. (Dalian Maritime University)
The package includes : M (simulator core), 2D (2D Terminal) and the 3D terminal.
You MUST have the DMSCTS workstation installed on you device. you can get it for free on ers3d.com or on the forum
You can create an account but, it's not mandatory.
To install :
- Un-Torrent the file.
- Copy the archive and paste it at : DRIVE://Programs/DMSCTS/Simulators
- Then, Launch the DMSCTS Terminal (DRIVE://Programs/DMSCTS/Terminal.exe)
- Log-in the terminal or use the default login.
- Enter a room/session
- Go to the simulator's core located in : DRIVE://Programs/DMSCTS/Simulators/VLCCVIRTUALLAB/DMSVLCCM.exe , launch it with elevated privileges.
- If you want to use the 2D terminal, launch the executable located in .VLCCVIRTUALLAB/2D
- If you want to use the 3D terminal, launch the executable located in .VLCCVIRTUALLAB/3D
Feel free to ask any questions or for help here.If you don't succeed to link the terminals to the M core, please, ask for help here and i will write a step-by-steps instructions list.
Thx !
Screenshots
VLCCAVirtualLAB
Download [38 KB]
Share
I got the 2D version working fine, but I'm having an issue with 3D: "Link to the server un-successfully"
Could you please help me with this?
Share
Please can you take and send in the topic screenshots of the network configuration menus of the 3D terminal and the M core ?
It's possibly a bad configuration, or the ports are actually used. we will fix that anyways (:
Share
https://drive.google.com/file/d...view?usp=sharing
Share
Share
@itc1975, your M client (DMSVLCCM) seems to be well configured, anyways, can you check the network mode in the operating menu is <<LOCAL>> and not <<DISTRIBUTED>> ?
thx !
Share
Share
I updated the settings to:
Network Mode: Multicast Mode
Multicast IP: 231.8.9.13 (retrieved from C:\Program Files\DMSCTS\simulator\VLCCAVirtualLAB\M\Xml\IPconfig3D.xml)
After clicking Save and Apply, it worked!
However, I noticed that I have to click "Save and Apply" every time I restart the LAB.
Share
Yes i noticed it too my friend, the terminal has a lot of bugs like that.
have fun !
