Advanced Electrical Workshop Course
Language: English
Author: Maersk
Genre: Training courses
Publisher: International Maritime Training Centre - Wilhelmsen
Format: PDF
Quality: eBook
Pages count: 205
Description: The workshop provides in-depth training on various electrical systems and troubleshooting techniques essential for marine engineers. It focuses on improving participants' confidence and competence in handling and analyzing electrical circuits, components, and systems.
Course Objectives:
- Understand the fundamental principles of electrical technology.
- Identify and interpret electrical symbols, components, and their functions.
- Learn to trace and troubleshoot complex electrical circuits logically.
- Gain hands-on experience with advanced electrical systems and equipment.
Theoretical:
- Alternating current (A.C.) fundamentals and generator operations.
- Power generation and parallel generator operations.
- Maintenance of air circuit breakers and hazardous zones.
- Motors, starters (including DOL, reduced voltage, and variable frequency drives), and soft starters.
- Secondary battery maintenance and cathodic protection.
Practical:
- Use of diagnostic tools like multimeters and meggers.
- Hands-on experience with contactors, relays, and timers.
- Wiring and troubleshooting of various starters (DOL, star-delta, etc.).
- Advanced troubleshooting on boiler control panels and other shipboard electrical systems.
Duration:
- 4 to 6 days, depending on the specific course structure.
Target Audience:
- Marine engineers, electrical officers, and related professionals seeking to improve their expertise in electrical systems.

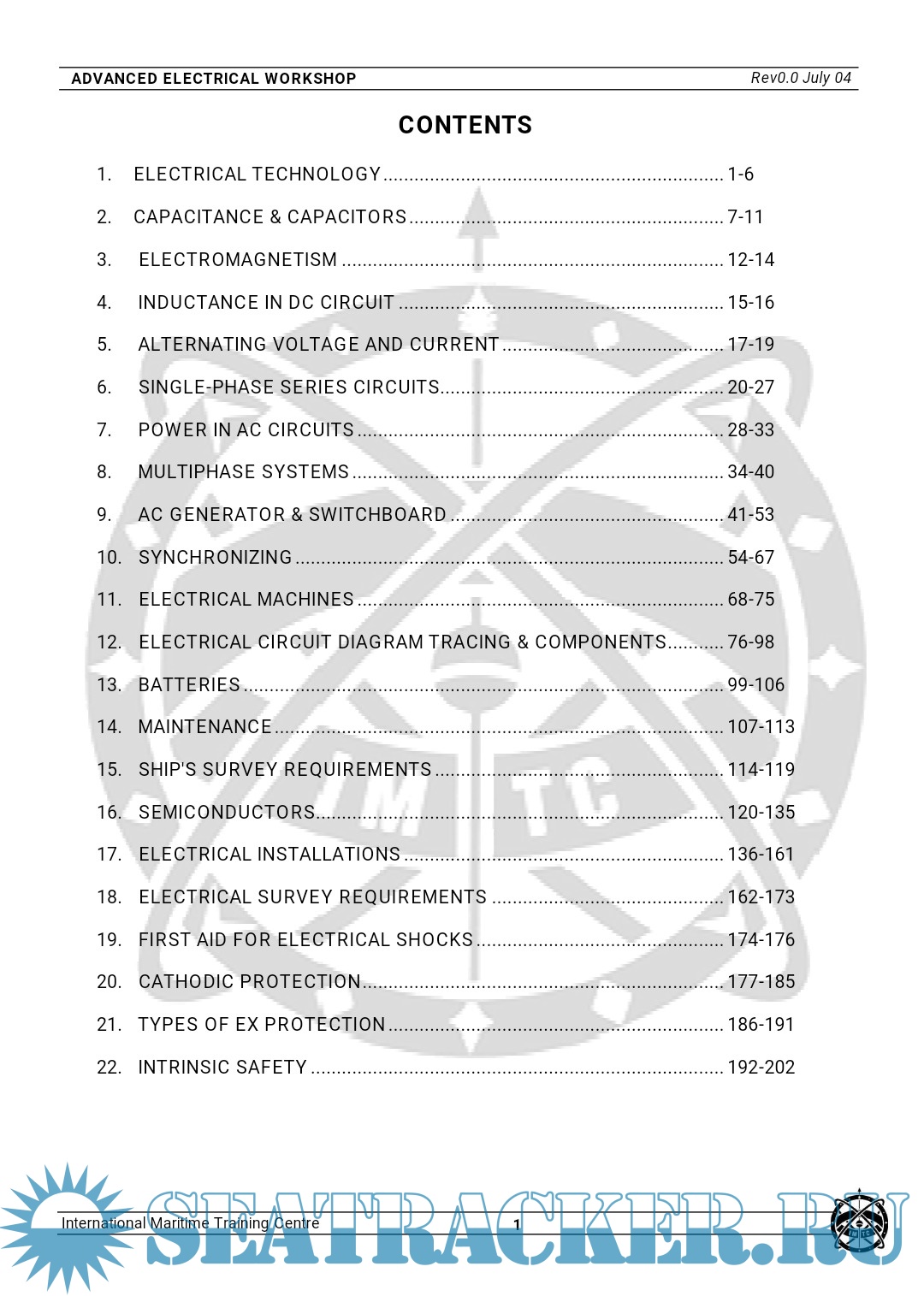

Index

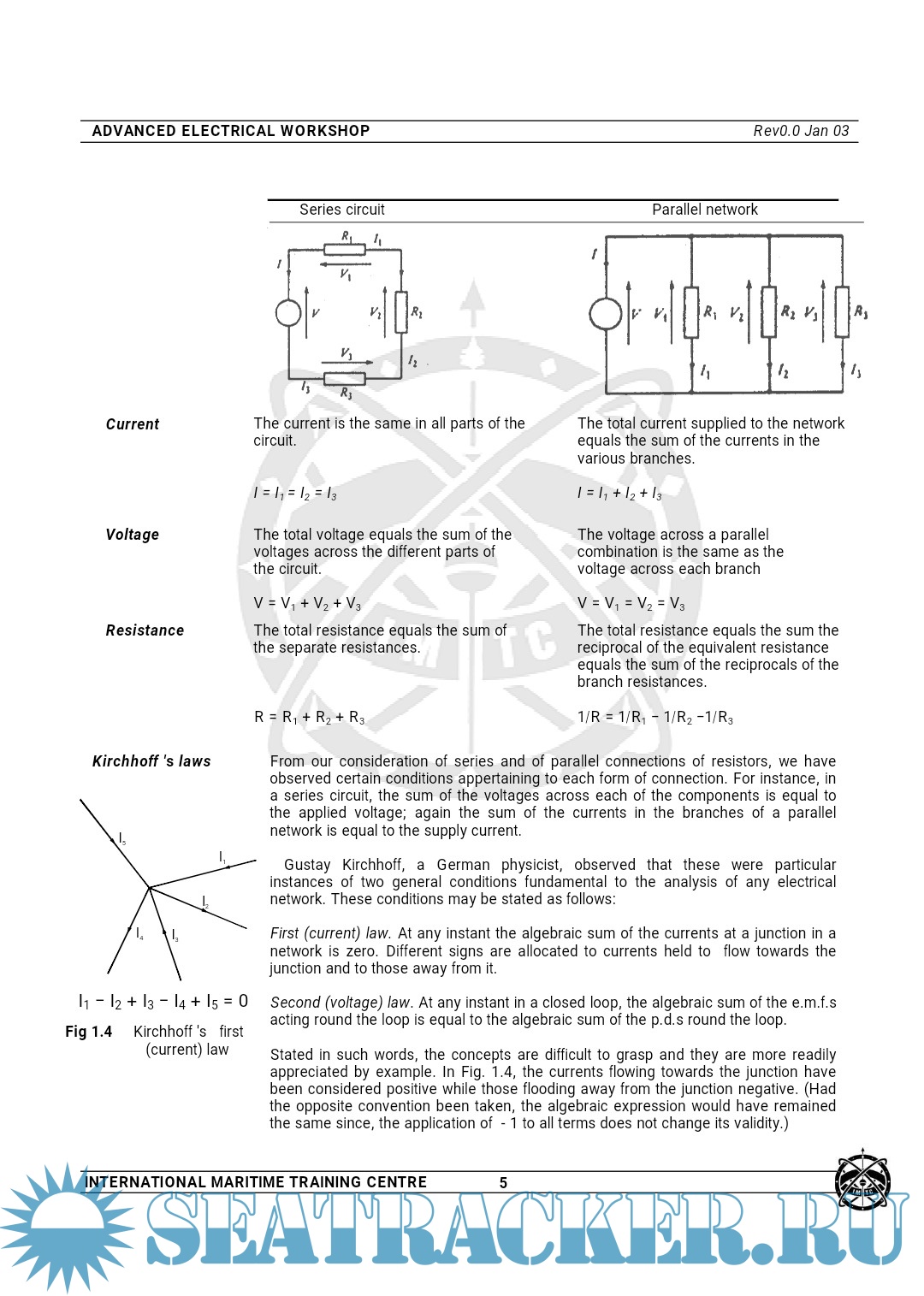

1. ELECTRICAL TECHNOLOGY .................................................................. 1-62. CAPACITANCE & CAPACITORS ............................................................. 7-11
3. ELECTROMAGNETISM .......................................................................... 12-14
4. INDUCTANCE IN DC CIRCUIT ............................................................... 15-16
5. ALTERNATING VOLTAGE AND CURRENT ........................................... 17-19

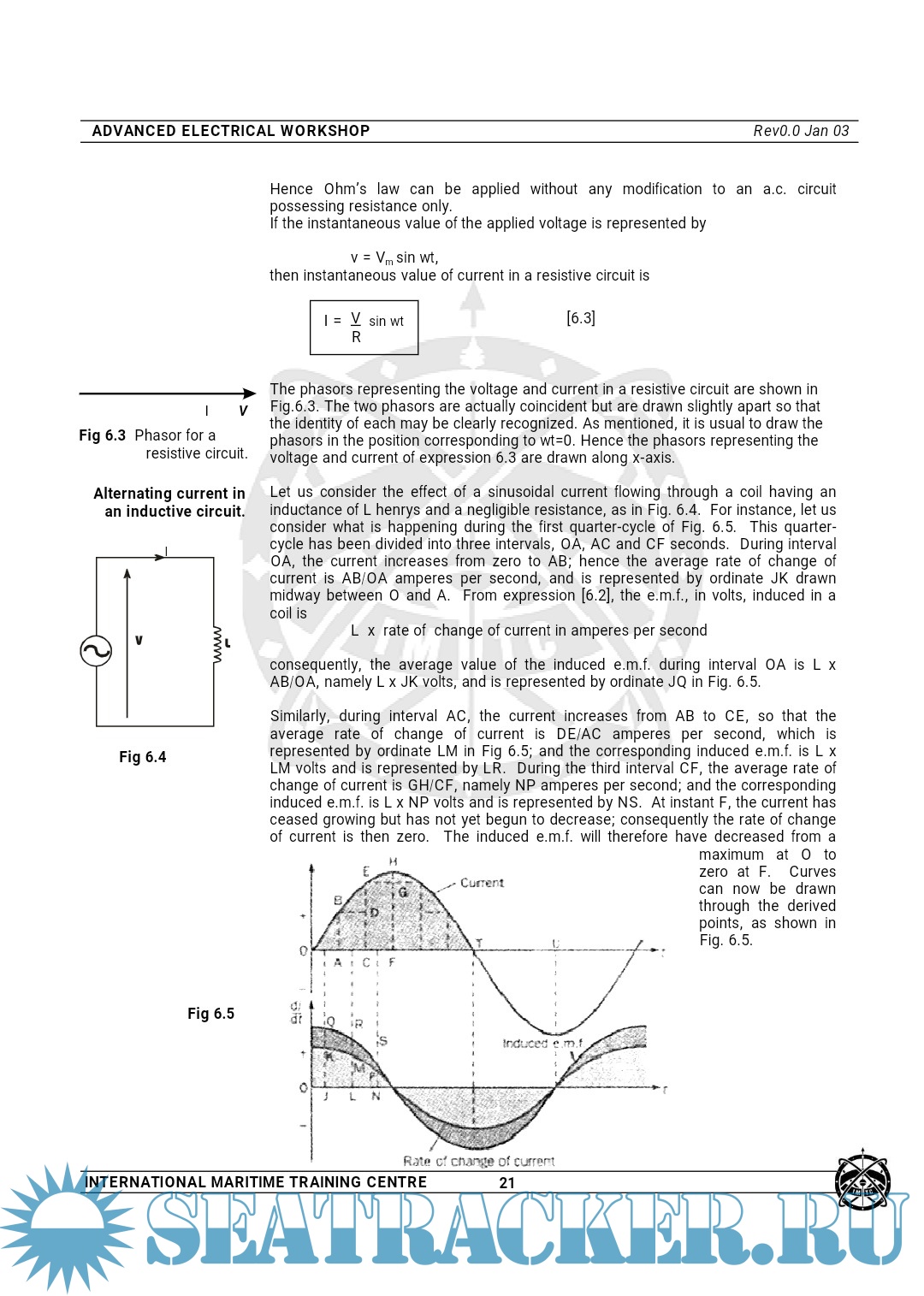

6. SINGLE-PHASE SERIES CIRCUITS....................................................... 20-27
7. POWER IN AC CIRCUITS ....................................................................... 28-33
8. MULTIPHASE SYSTEMS ........................................................................ 34-40
9. AC GENERATOR & SWITCHBOARD ..................................................... 41-53
10. SYNCHRONIZING ................................................................................... 54-67

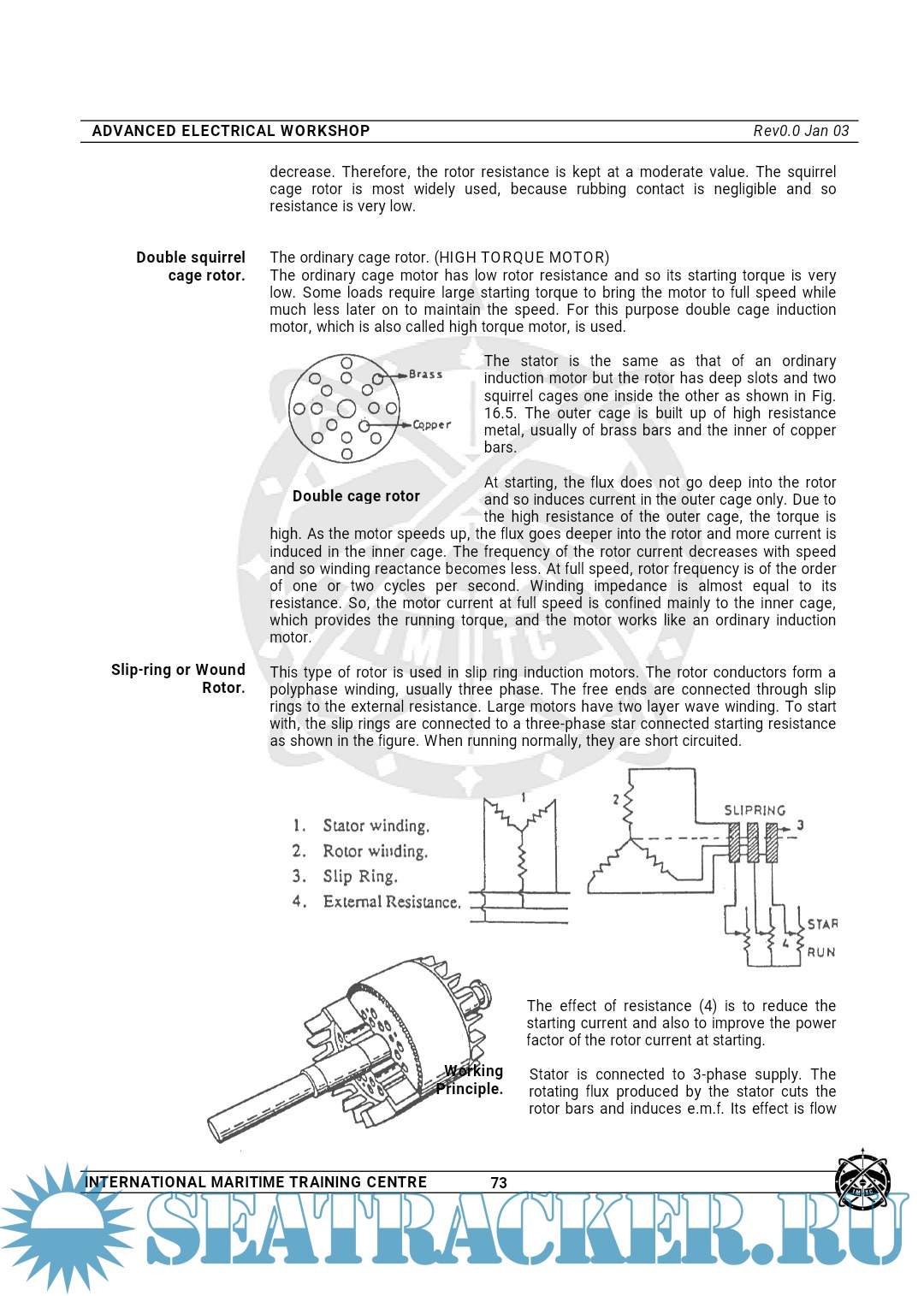

11. ELECTRICAL MACHINES ....................................................................... 68-75
12. ELECTRICAL CIRCUIT DIAGRAM TRACING & COMPONENTS........... 76-98
13. BATTERIES ............................................................................................. 99-106
14. MAINTENANCE ....................................................................................... 107-113
15. SHIP'S SURVEY REQUIREMENTS ........................................................ 114-119

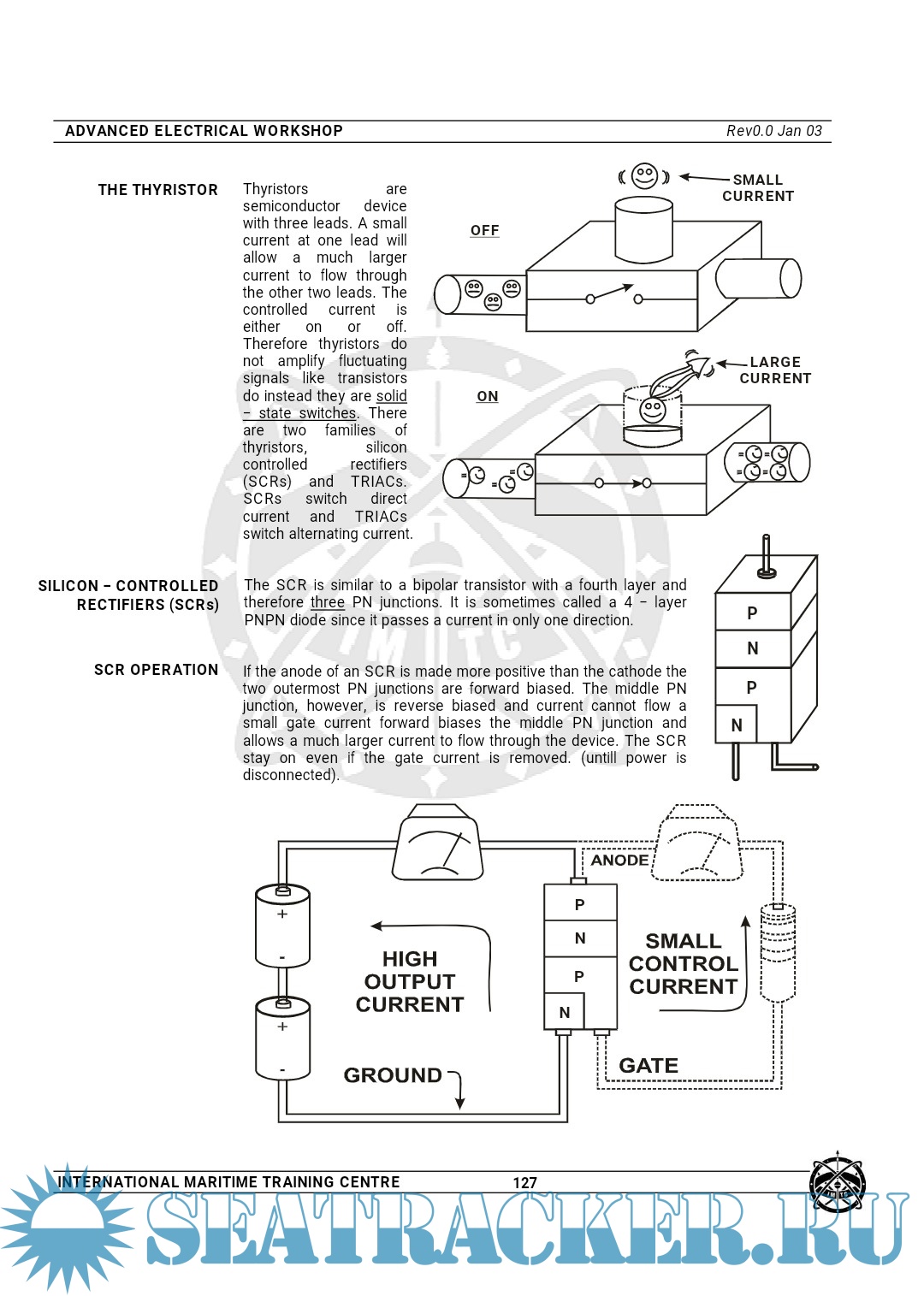

16. SEMICONDUCTORS............................................................................... 120-135
17. ELECTRICAL INSTALLATIONS .............................................................. 136-161

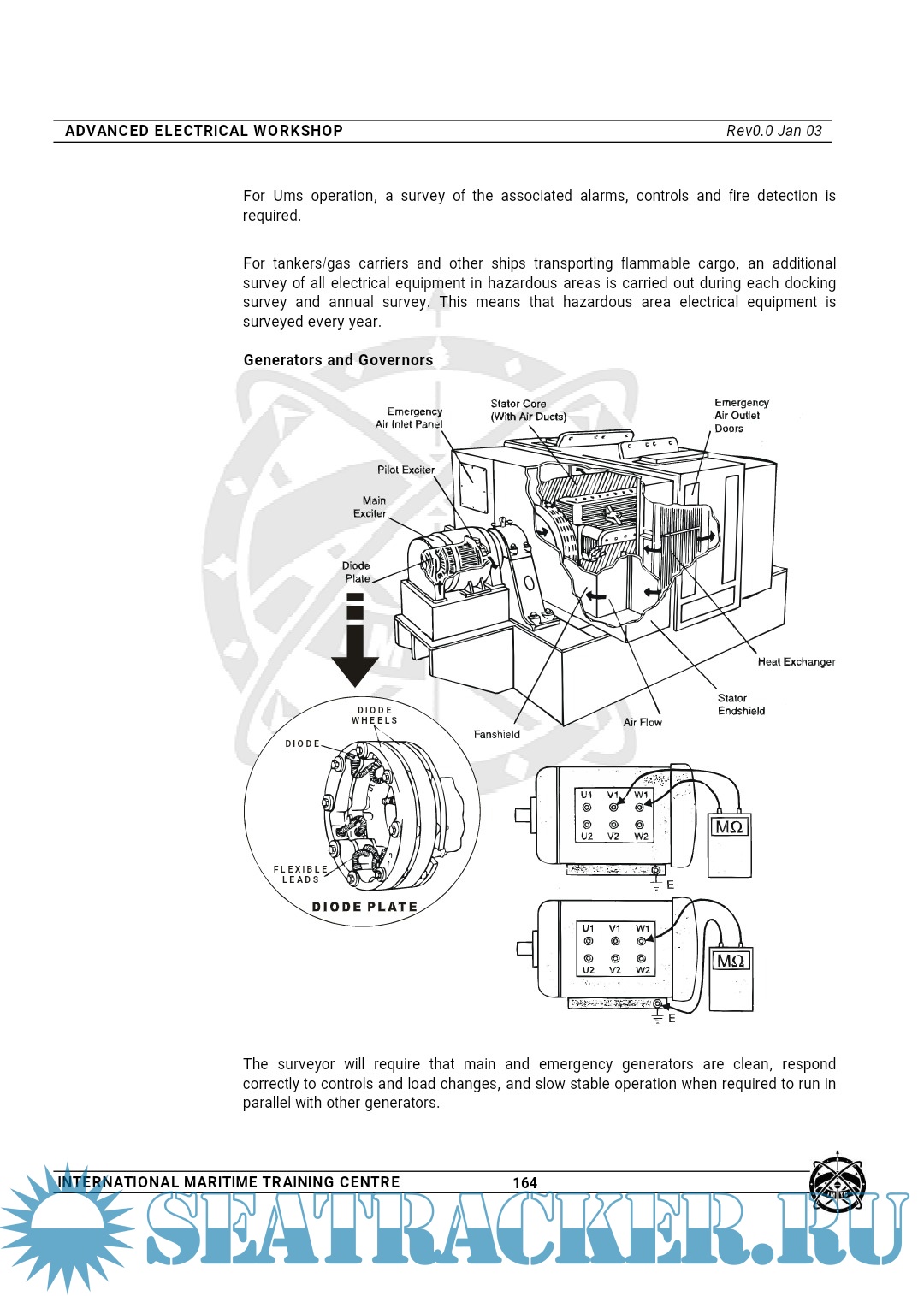

18. ELECTRICAL SURVEY REQUIREMENTS ............................................. 162-173
19. FIRST AID FOR ELECTRICAL SHOCKS ................................................ 174-176
20. CATHODIC PROTECTION ...................................................................... 177-185
21. TYPES OF EX PROTECTION ................................................................. 186-191

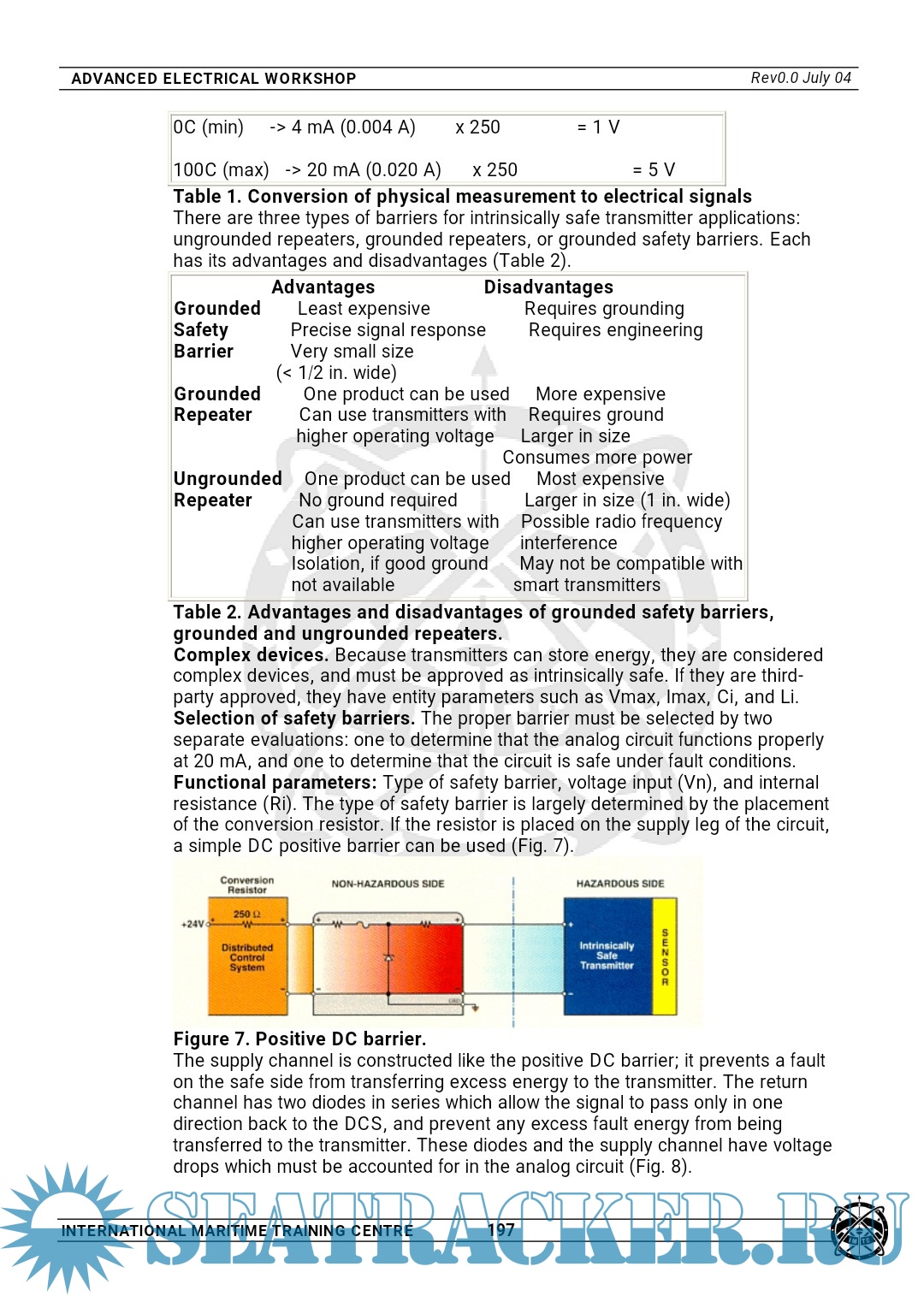

22. INTRINSIC SAFETY ................................................................................ 192-202
